Understanding the Parts of a Compound Crossbow: A Complete Guide

Welcome back, crossbow enthusiasts! Whether you’re a seasoned hunter or just starting your archery journey, knowing your equipment inside and out is key to success. Today, we’re diving into the world of compound crossbows, exploring each part to help you get the most out of your gear.

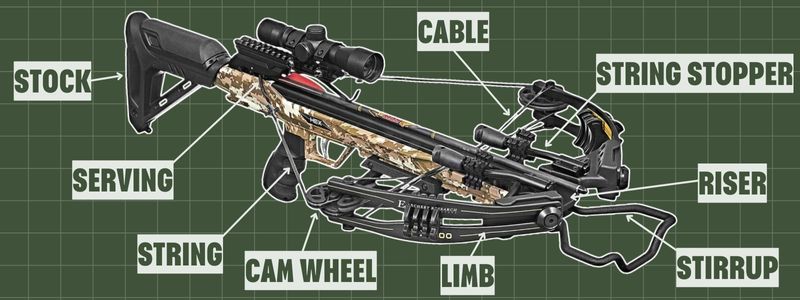

The Stock

The stock is the backbone of your crossbow. It’s where you hold and shoulder the weapon, much like a rifle. Stocks are typically made from durable materials like composite plastics, fiberglass, or wood. They provide stability and house many of the crossbow’s essential components.

Limbs

Compound crossbows feature short, stiff limbs connected to a system of cables and pulleys. Unlike recurve crossbows, the limbs on a compound are more compact, allowing for a shorter overall length without sacrificing power. These limbs store the energy needed to propel the bolt forward.

Cams (Pulleys)

The defining feature of a compound crossbow is its cams or pulleys. Located at the ends of the limbs, these mechanical systems reduce the draw weight, making it easier to cock the crossbow. They also increase the power and speed of the bolt upon release, thanks to the energy stored in the cables and limbs.

Cables and String

The cables and string work in harmony with the cams. The cables connect the cams and limbs, while the string is what you draw back and release to fire the bolt. Regular inspection and maintenance of these components are crucial for optimal performance and safety.

Stirrup

At the front end of the crossbow, you’ll find the stirrup. This metal loop is where you place your foot to stabilize the crossbow while cocking it. The stirrup provides leverage, making it easier and safer to draw the string back.

Foot Claw

Some models include a foot claw, an alternative to the stirrup. It serves the same purpose, providing a secure point to anchor your foot while cocking the crossbow.

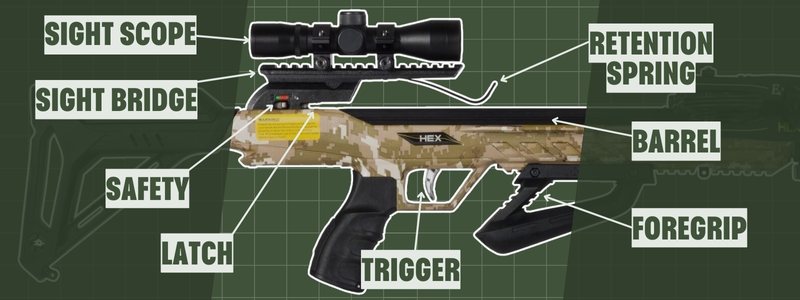

Trigger Mechanism

The trigger mechanism holds the drawn string in place until you’re ready to fire. It functions similarly to a firearm trigger, providing a controlled release of the string. A smooth and reliable trigger is essential for accuracy, so keep it clean and well-maintained.

Sight

To hit your target consistently, a good sight is indispensable. Compound crossbows often come equipped with advanced sights, such as red dot sights or magnified scopes. These sights help you aim precisely, especially at longer distances. Make sure to calibrate your sight according to your shooting range.

Barrel (Flight Track)

The barrel, or flight track, guides the bolt as it leaves the crossbow, ensuring a straight and accurate flight. Keeping the flight track clean and smooth is important to prevent any interference with the bolt’s trajectory.

Safety Mechanism

Safety first! The safety mechanism prevents accidental firing by locking the trigger until you’re ready to shoot. Always engage the safety when loading and handling your crossbow to ensure safe operation.

Anti-Dry Fire System

Many compound crossbows feature an anti-dry fire system. This safety feature prevents the crossbow from being fired without a bolt in place, protecting the bow from damage and enhancing user safety.

Quiver

The quiver is an accessory that holds your bolts, keeping them within easy reach. It can be attached to the crossbow or carried separately. A well-designed quiver enhances your shooting experience by providing quick access to your ammunition.

Cocking Device

To assist with drawing the string, compound crossbows often accommodate cocking devices like rope cockers or crank systems. These tools reduce the physical effort required, ensure consistent string alignment, and are especially helpful for archers who may struggle with the higher draw weight.

Conclusion

Understanding each part of your compound crossbow not only boosts your confidence but also enhances your shooting performance and safety. The combination of cams, cables, and rigid limbs allows for a powerful and efficient shooting experience, making compound crossbows a top choice for many archers.
